Spiritworks Boiler with Alembic Copper Dome and Alembic Copper Condenser - Complete Starter Bundle

Spiritworks Boiler with Alembic Copper Dome and Alembic Copper Condenser - Complete Starter Bundle

SKU
sw99003
The addition of the Alembic Copper Dome and Alembic Copper Condenser transform the Spiritworks Boiler into an Alembic Pot Still. Instead of stripping flavours to give clean spirit like the Turbo 500 Condenser, this pot still retains and enhances flavours. This can be used when distilling washes that contain flavours that you wish to collect. Complete kit designed for collecting the natural flavours we would get in a fermentation. This piece of kit is perfectly suited to those for example wanting to make Whisky from grain or Rum for Molasses Vodka from Potatoes and other similar washes. All you need to get started making fantastic spirits & liqueurs. You will not find a better value for money kit anywhere. This will make 10 x 75cl bottles of 40% ABV liquor. Once the starter pack has been purchased each additional batch will cost approx. £2.30 a bottle. See our Cost of Producing Spirits & Liqueurs guide for more details.
In stock
£550.00 £458.33

Spiritworks Boiler with Alembic Copper Dome and Alembic Copper Condenser - Complete Starter Bundle

The addition of the Alembic Copper Dome and Alembic Copper Condenser transform the Spiritworks Boiler into an Alembic Pot Still. Instead of stripping flavours to give clean spirit like the Turbo 500 Condenser, this pot still retains and enhances flavours. This can be used when distilling washes that contain flavours that you wish to collect.

All you need to get started making fantastic spirits & liqueurs. You will not find a better value for money kit anywhere.

This will make 10 x 75cl bottles of 40% ABV liquor. Once the kit has been purchased each additional batch will cost approx £2.30 a bottle.

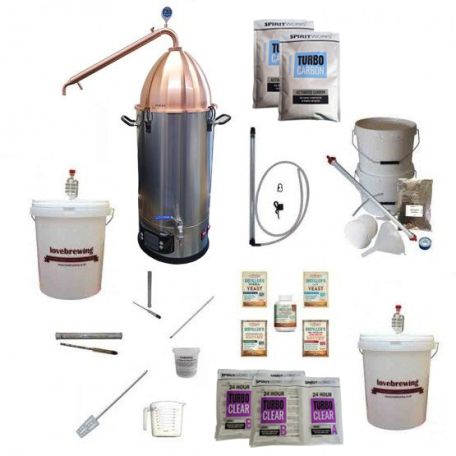

Equipment Included

  • 1 x Spiritworks Boiler
  • 1 x Still Spirits Alembic Copper Dome Top
  • 1 x Still Spirits Alembic Copper Condenser
  • 1 x Spiritworks Granular Carbon Filter, complete with 2x 10 Litre Buckets and all neccessary fittings. (See below for details).
  • 2 x 30 Litre Food Grade Plastic Buckets with Lids & Grommets
  • 1 x Mixing Spoon or Paddle
  • 1 x Hydrometer
  • 1 x Thermometer
  • 1 x Stick on Thermometer
  • 1 x Trial Jar - this has graduations so can be used as a measuring cylinder up to 250ml
  • 1 x Auto Siphon with anti sediment end, tap end and bucket clip (for transferring the liquor to other containers and bottling)
  • 1 x Jug (Very useful for mixing Spirits & Liqueurs)
  • 1 x Spirit Hydrometer (For testing the amount of Alcohol by Volume (ABV)

Spiritworks Boiler

The Spiritworks Boiler is a revelation in design every detail, from the temperature programming to the sturdy handles for easy moving, has been thought about with the small distiller in mind. Temperatures can be set on the display panel but please be aware when the boiler reaches the set temperature it will cut out and only kick back in when it has dropped approx. 3C. This is quite standard in these types of boiler.

Spiritworks Boiler Features

  • Temperature control panel for easy setting (and specific temperatures to minimise the of use of Electricity)
  • Specially sized Thermal insulation jacket available to protect and save heating lose
  • Coated Twin handles for easy lifting
  • Stainless Steel tap with Safety Locking clip
  • Threaded end on the tap to take dumping pipes (ordered separately)
  • External/Internal Litre Graduation marks 5 to 25 litre
  • Boil dry reset.
  • Thermal cut out fuse.
  • 25 litre boiler with 1750 and 500w integrated element (dual switch)
  • Separate Electric cable for ease of moving and storage (can also be easily replaced)
  • CE Tested and Approved Conforms to the EU Directives
  • Can also be used as a thermostatically controlled fermenter (from 20C). Temperature cut out will mean accuracy is 3-5C fluctuations. Room temperature must be less than your setting.
  • Comes with two bungs one with a hole for airlock (for fermenting) and one solid (use for sparging)

Boiler Measurements

  • Height (external): 585 mm
  • Height (internal): 430 mm
  • Diameter: 300 mm
  • Weight: 5.5kg

Yeasts Included

  • 2 x Turbo Clear
  • 2 x Turbo Carbon
  • 1 x Still Spirits - Distiller’s Yeast Gin 20g
  • 1 x Still Spirits - Distiller’s Yeast Vodka 20g
  • 2 x Still Spirits - Distiller’s Enzyme Glucoamylase 12g
  • 1 x Still Spirits - Distiller’s Nutrient Light Spirits 450g

Consumables Included

  • 1 x 100g Steriliser

Includes

  • Faucet Adapter for ease of water flow adjustment.
  • 25 litre boiler with 2kw integrated element.
  • Boil dry reset.
  • Thermal cut out fuse.
  • Waste discharge tap.

Spiritworks Granular Carbon Filter - Contents

  • Aluminium Tube with 2 ends with washers
  • Anodised Aluminium Mesh Filter support (top)
  • Stainless mesh filter (bottom)
  • 2 x 10-litre buckets with lids and a tap.
  • One length of siphon tube.
  • Funnel
  • 1 x 1kg of Granular Carbon

The Filter is designed to clean the alcohol after distillation and remove off flavours and smells which can happen in the process. For the filtration to work effectively it's essential the strength of the alcohol that needs treating is between 40-50% ABV. Please dilute your alcohol to be within this range before starting. Please note some distillations will not want to be run through the filter because this can take out Essential flavours you may wish to retain.

Further Information

For information regarding the distillation of alcohol using this still in the UK please see our UK Disclaimer Page.

Note:

The Alembic shouldn’t be used with the Water Flow Regulator. Even when it’s at full blast, it produces around 2.4L/min. Sometimes when distilling you need a higher flow rate, so the water should come straight from the tap and not the Water Regulator.

Unlike the T500, the Alembic is more forgiving to a fluctuation in temperature. If you connect the tubing straight to the tap, you shouldn’t have any issues.

Downloadable Guides
pdf
Spiritworks Boiler Instructions (MK3)
